2804 2300kv multicopter outturnner high rmp rc brushless dc motor

Product Categories

Shenzhen Brotherhobby Co., Limited

Contact Now

2804 2300kv multicopter outturnner high rmp rc brushless dc motor

Name: 2804 2300kv multicopter outturnner high rmp rc brushless dc motor
Brand: Brotherhobby
Price: 1 USD

Place of Origin : shenzhen

Brand Name : Brotherhobby

Model Number : BHM2804

Certification : CE, ROHS

Style : Radio Control Toy

Power : battery

kv : 2300

Item : brushless dc motor

Type : Multicopter

Material : metal

Stator Diameter : 22mm

Stator Length : 4mm

Shaft Diameter : M5

No.of Cells( Lipo) : 2-3S

Max efficiency : >70%

Price : $10/pcs

Packaging Details : Plastic box with inner poly bag

Delivery Time : 5-7 days

Payment Terms : T/T western union

Supply Ability : 200000/month

MOQ : 10 piece

Contact Now

2804 2300kv multicopter outturnner high rmprc brushless dc motor

Design Feature:

1. Long life of Japan NMB ball bearings.

2. Efficient Japanese Kawasaki stator steel.
3. Rare earth magnets stable up to 180°.
4. Anaerobic pure copper wires.
5. CNC machining aluminum alloy shell.
6. The Silicone wire leads.
7. The balance of the patent technology.
8. The Unique connection method.

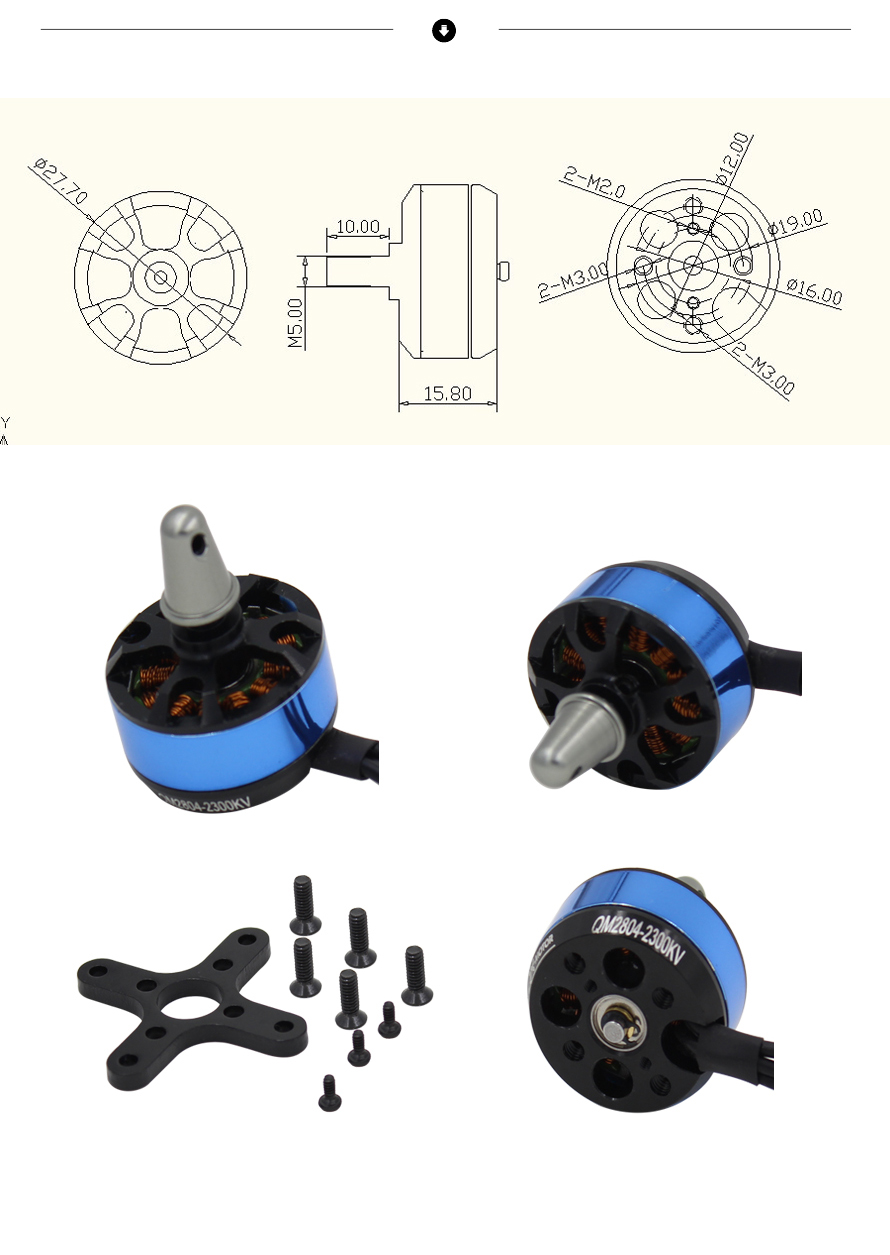

2804 outer rotor brushless dc motor

MOTOR: QM2804 Technical Datas

KV	2300KV	Idle Current @ 10.0V	0.6A
Configu-ration	12N14P	No.of Cells( Lipo)	2-3S
Stator Diameter	22mm	Max continuous Current (A) 60S	12A
Stator Length	4mm	Max continuous Power (W) 60S	144w
Shaft Diameter	M5	Max efficiency	>70%
Motor Dimension( DiaxL)	28x15mm	Interal resistance	112mΩ
Net Weight( g )	26.5	Recom. Speedcontroler	15A

Prop	Volts (V)	Amps (A)	Thrust (g)
5in three - bladed propelle	7.4	7.1	290
	11.1	13.0	520
6in three - bladed propelle	7.4	7.0	390
	11.1	17.5	710

2804 2300kv multicopter outturnner high rmp rc brushless dc motor

Packaging Detail:

2804 2300kv multicopter outturnner high rmp rc brushless dc motor
